Additional components

Dosing buffer

Dosing buffer

Type                    IT-DOS
Buffer volume   2.5/ 3.5/ 5.0 m³

In addition to feeding the waste into the recycling plant, the dosing buffer has the function of initially buffering larger quantities of waste. These are then continuously fed into the recycling plant through a rotating spiral. Dosing buffers are used in particular for intermittent feeding of the waste.

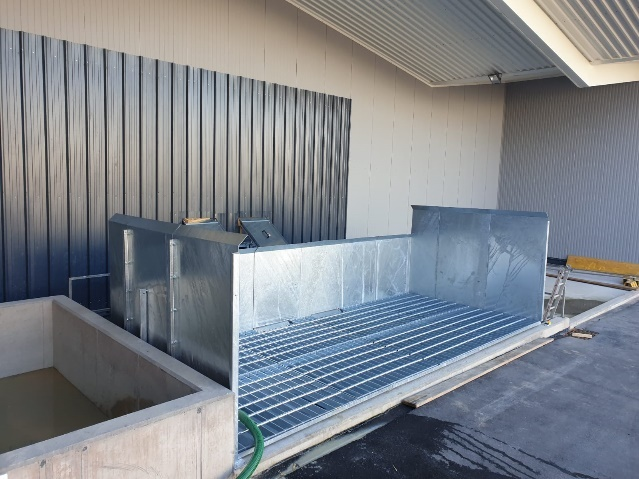

Feeding hopper

Feeding hopper

Type                   IT-AB
Buffer volume   4.5/ 9.0 m³

The feed hopper is an alternative to the dosing buffer. Here, too, the waste quantities are first buffered and then continuously fed to the recycling plant via a screw conveyor.

Contaminant separator

Contaminant separator

Type                    IT-SSA
Separating cut   5 mm (adjustable)

Impurity separators remove coarse and impurities from the process water.

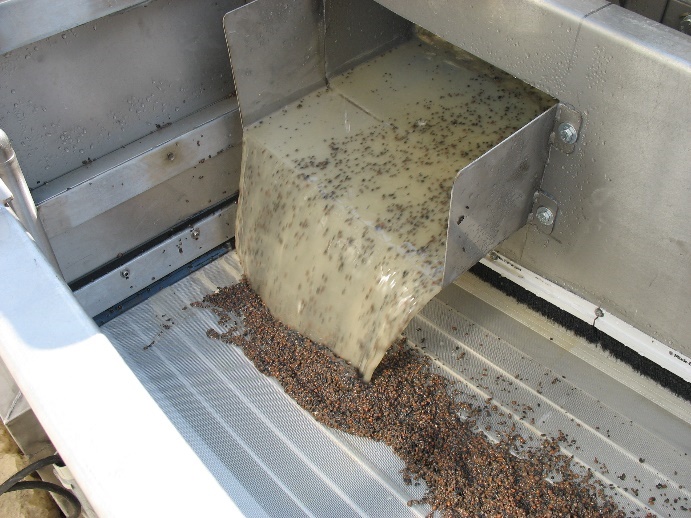

Fine particle separator

Fine particle separator

Type        IT-FTA
Cut-off    60 μm

Fine particle separators remove contained components >60 μm from the process water.

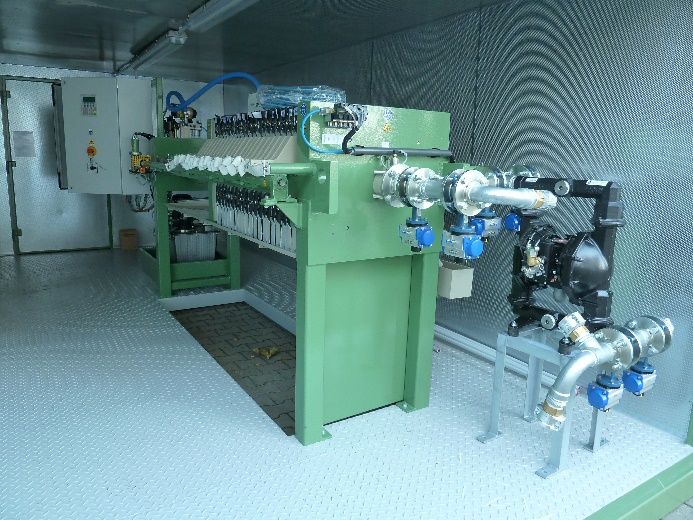

Filterpress

Filterpress

Type        IT-FP
Design    chamber filter press/ membrane filter press
Plates      470/ 800/ 1,200 mm plates

The filtration of the process water takes place in the filter press. This produces filtered water (filtrate) as well as filter cake that is resistant to piercing.
